GROUND SUPPORT EQUIPMENT

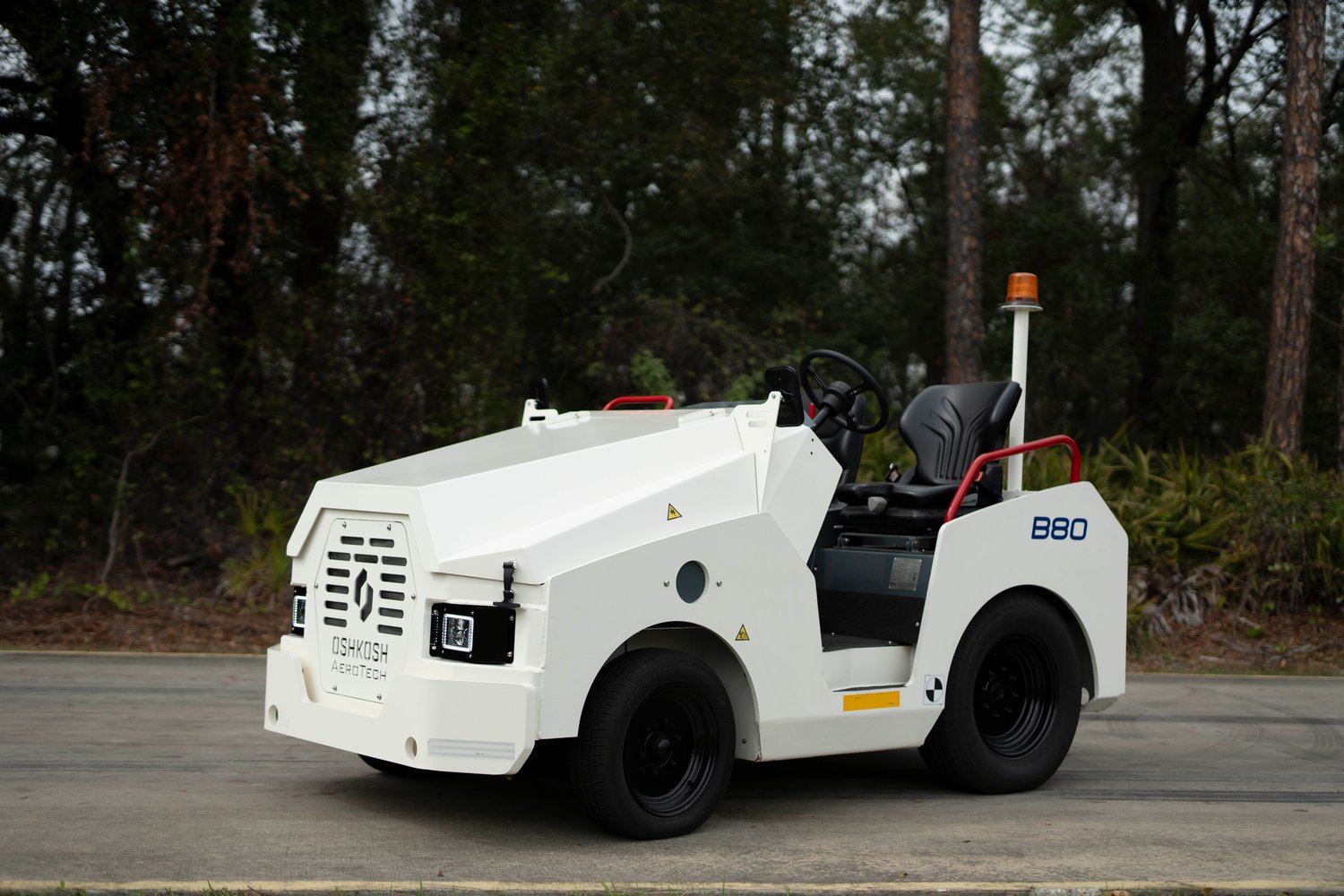

B80® Electric Cargo and Baggage Tractor

Welcome to the new future of transporting cargo on the ramp!

Combining heavy-duty strength and electric power, the B80® Electric Cargo Tractor is designed for the harsh and demanding environment of today’s ramp.

The B80 Electric Tractor provides operators with a safe, ergonomically-friendly airport tow / cargo tractor. The unit features industry leading front and rear suspension configurations and low profile driver access. Operators enjoy the ride of a passenger vehicle with the toughness of a design-for-purpose ramp cargo tractor.

With a top speed of 20 mph (32kph), a draw bar pull of 5,000 lbs (22.2 kN), and a unit weight of 9,600 lbs (4355 kg), the B80 Electric Tractor is ready to move your cargo with efficiency.

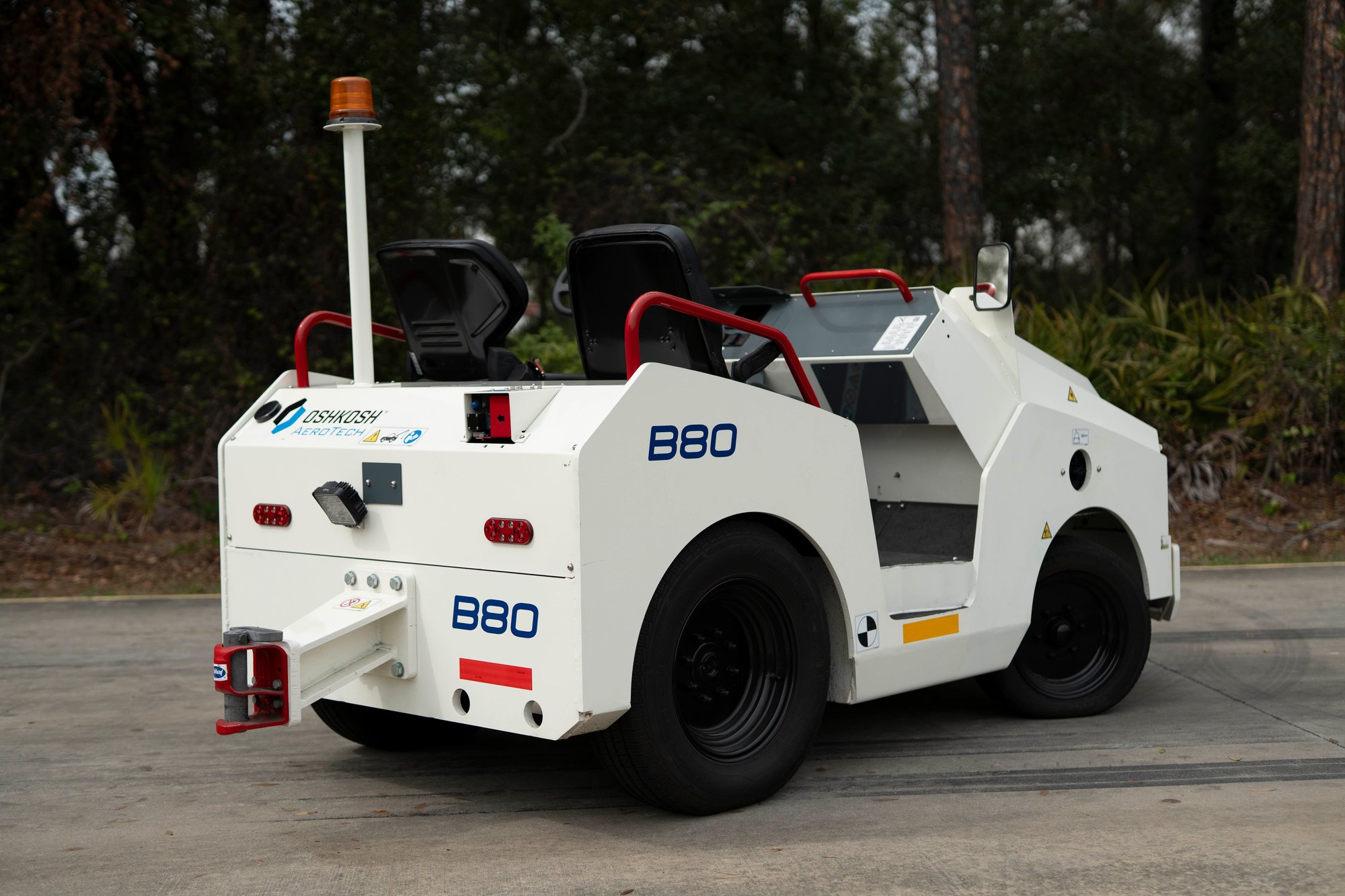

B80 Electric rear view

Easy, Electric Operation

This tractor provides the ease of a comfortable ride through its independent front suspension and the necessary power to tow heavy loads.

  • Electric-powered, bringing sustainability to your ramp operations
  • Ergonomic "suspension" seats to help maximize operator comfort
  • A robust rear leaf spring suspension
  • Great maneuverability with a tight turning radius:
    • 69.5 in / 1.76 m (inside rear tire)
    • 150.5 in / 3.82 m (swept)
  • 4-wheel disc brakes

Performance Features & Dimensions

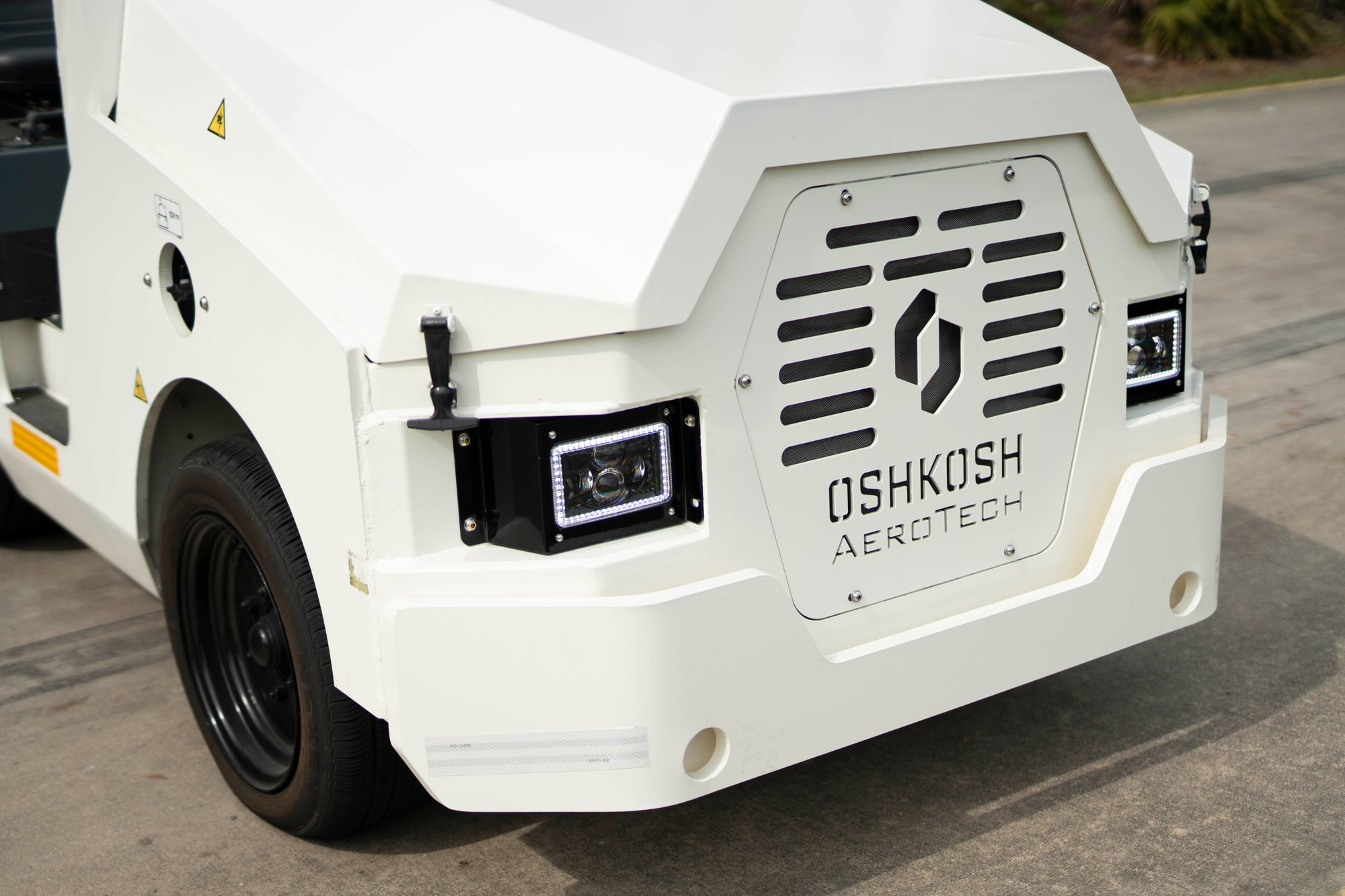

B80E Front Closeup

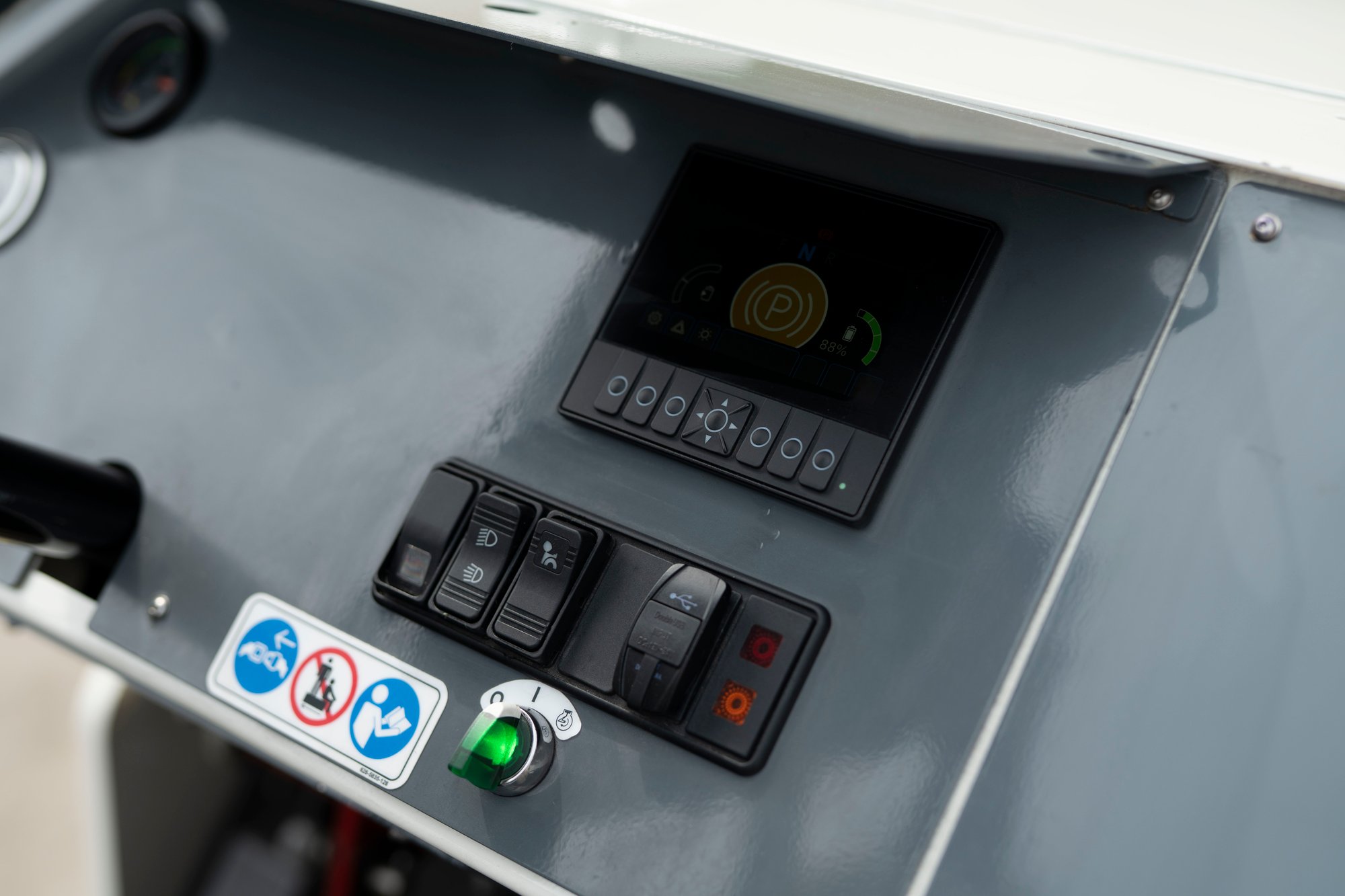

B80E Dashboard

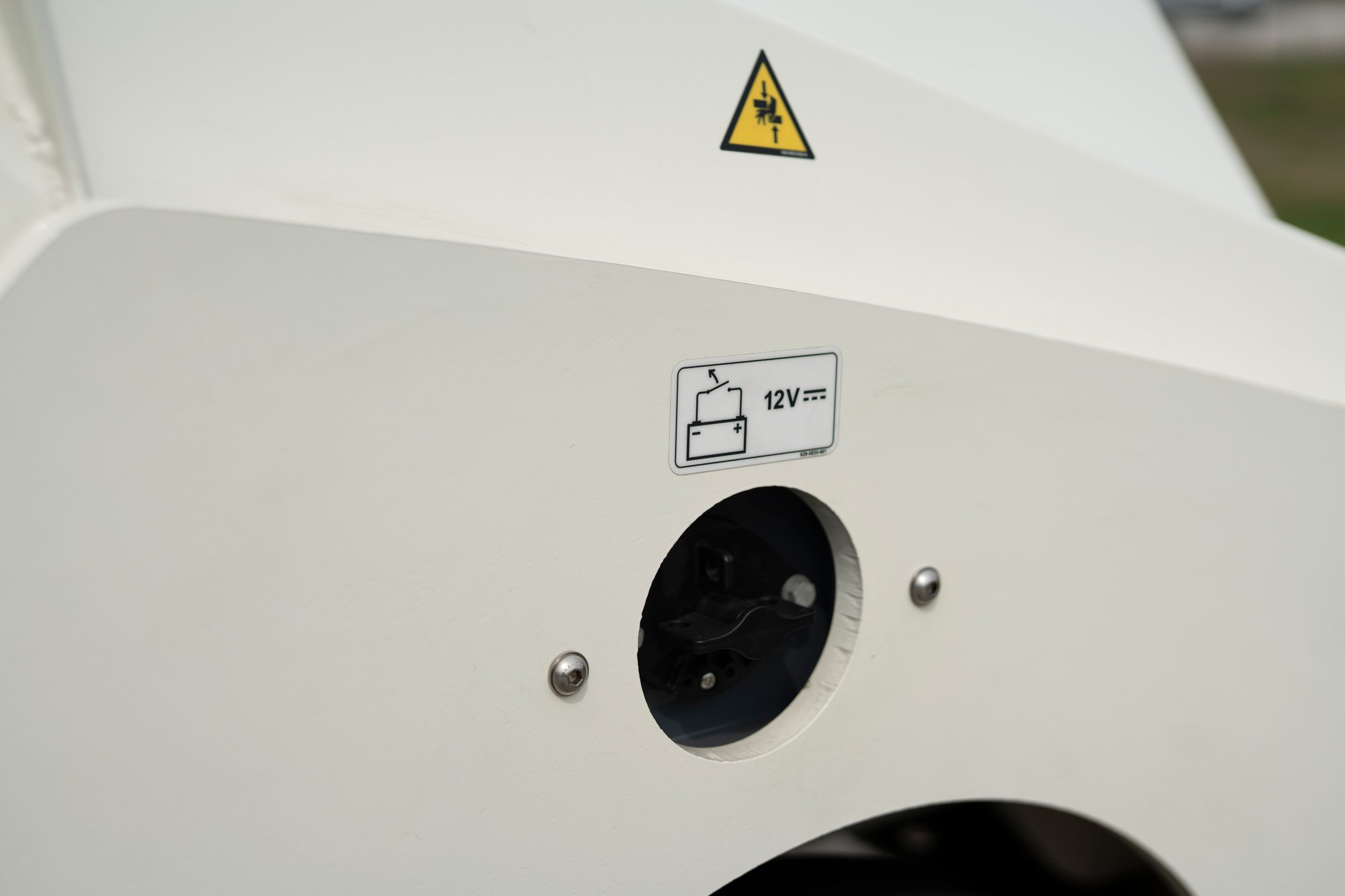

B80E Charging Port
  SAE Metric
Height (top of beacon, no cab) 71.0 in 1.8 m
Length (without rear tow hitch) 112.5 in 2.86 m
Length (with hitch) 130.3 in 3.31 m
Wheelbase 62.3 in 1.58 m
Width (with mirrors) 57.8 in 1.46 m
Breakover Ground Clearance 6.9 in 0.17 m
Front Bumper Clearance 8.6 in 0.22 m
Rear Bumper Clearance 9.2 in 0.23 m
Hitch Hook Height 11.5 in 0.29 m
Max. Drive Speed 20mph 32kph
DBP 5,000 lb  22.2 kN
Weight 9,600 lb 4,355 kg
Rear Axle Newage – Model 515 planetary (subject to change)
Rear Tires LT225 R16
Front Tires 185/60 R14
