GROUND SUPPORT EQUIPMENT

B80® Electric Cargo and Baggage Tractor

Welcome to the new future of transporting cargo on the ramp!

Combining heavy-duty strength and electric power, the B80® Electric Cargo Tractor is designed for the harsh and demanding environment of today’s ramp.

The B80 Electric Tractor provides operators with a safe, ergonomically-friendly airport tow / cargo tractor. The unit features industry leading front and rear suspension configurations and low profile driver access. Operators enjoy the ride of a passenger vehicle with the toughness of a design-for-purpose ramp cargo tractor.

With a top speed of 20 mph (32kph), a draw bar pull of 5,000 lbs (22.2 kN), and a unit weight of 9,600 lbs (4355 kg), the B80 Electric Tractor is ready to move your cargo with efficiency.

B80 Electric Tractor

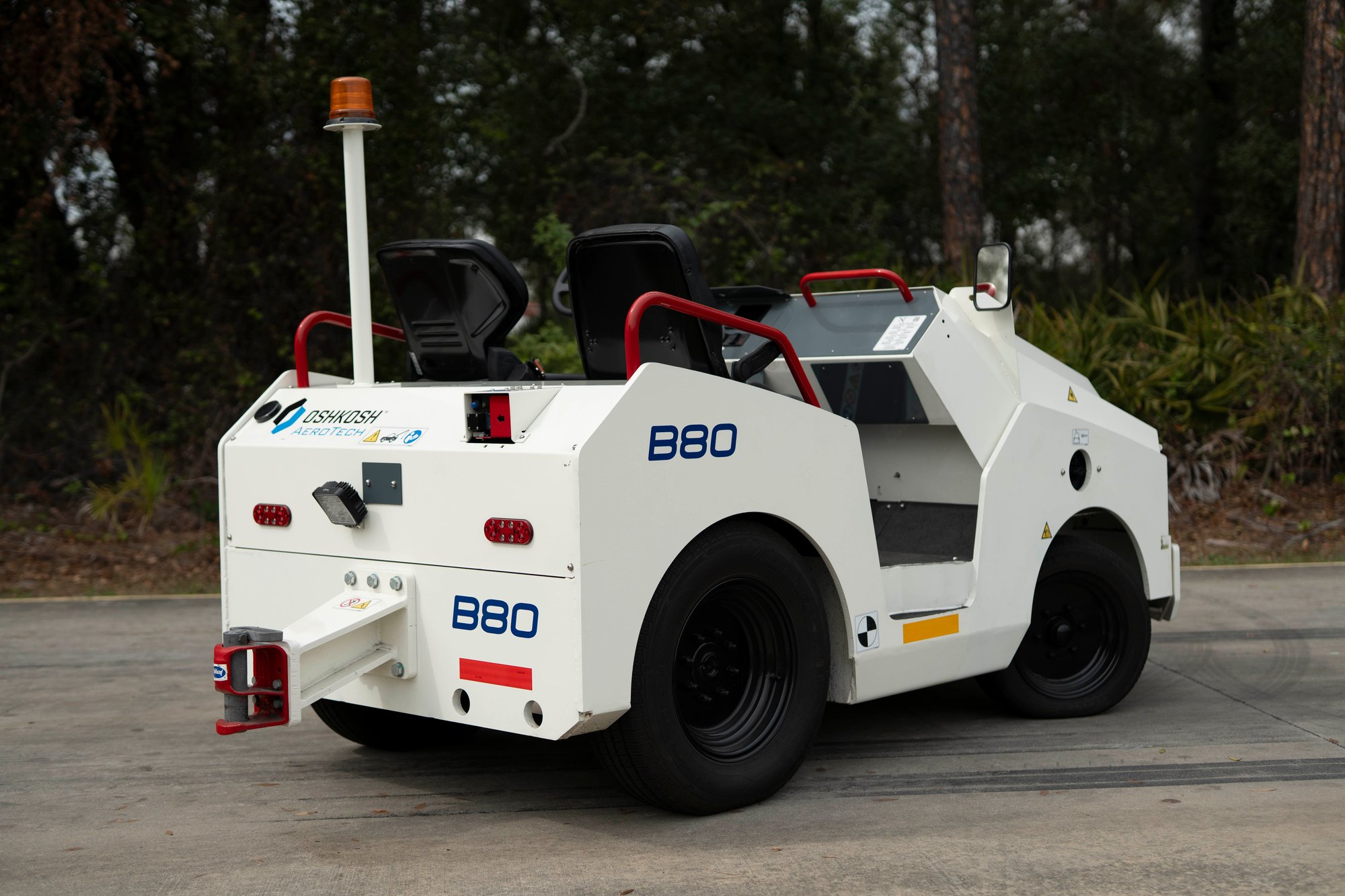

B80 Electric rear view

Easy, Electric Operation

A comfortable ride with a powerful, independent front suspension designed for towing heavy loads.

  • Electric-powered, bringing sustainability to your ramp operations
  • Ergonomic "suspension" seats to help maximize operator comfort
  • A robust rear leaf spring suspension
  • Great maneuverability with a tight turning radius:
    • 69.5 in / 1.76 m (inside rear tire)
    • 150.5 in / 3.82 m (swept)
  • 4-wheel disc brakes

Performance Features & Dimensions

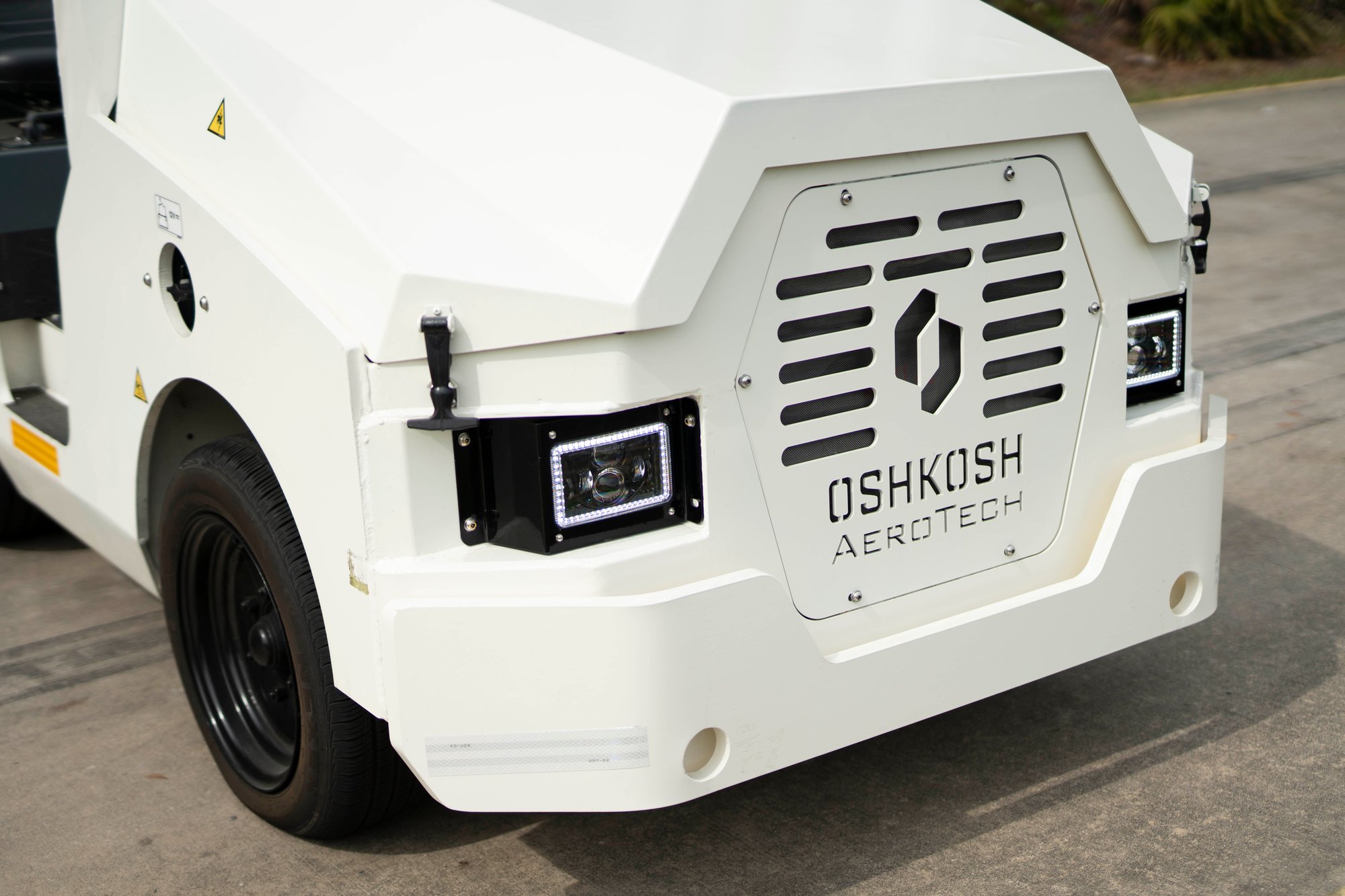

B80E Front Closeup

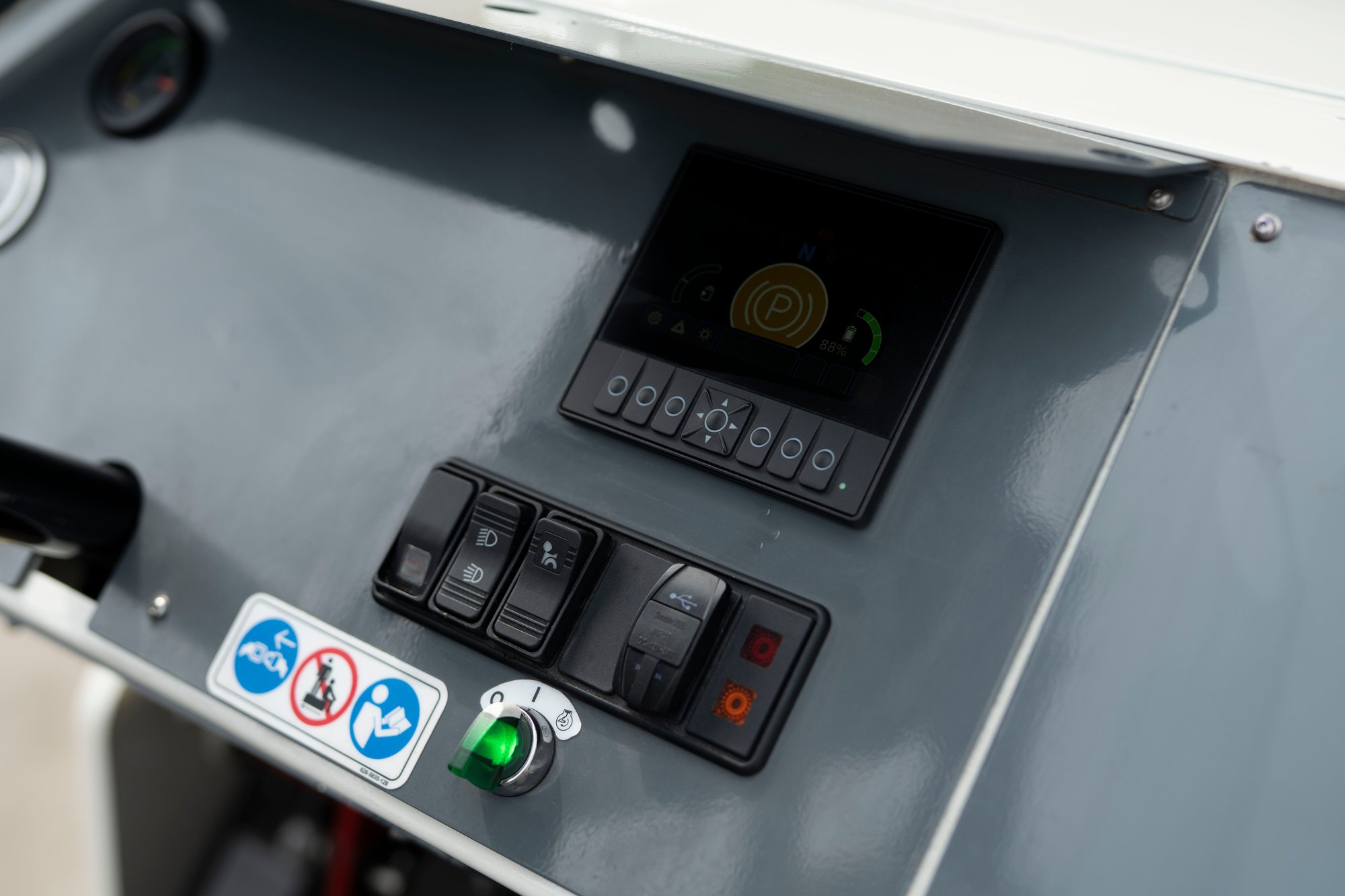

B80E Dashboard

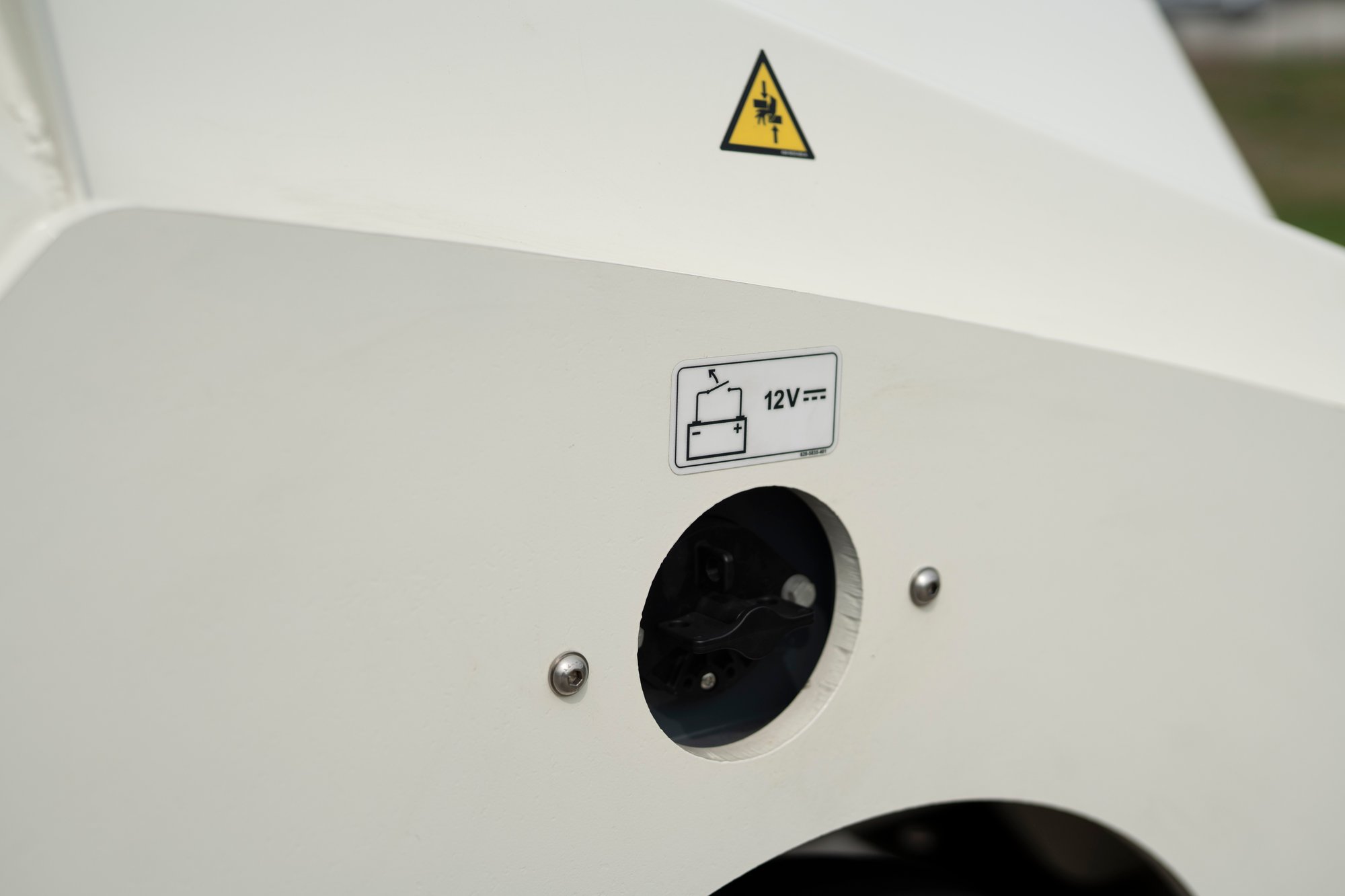

B80E Charging Port
  SAE Metric
Height (top of beacon, no cab) 71.0 in 1.8 m
Length (without rear tow hitch) 112.5 in 2.86 m
Length (with hitch) 130.3 in 3.31 m
Wheelbase 62.3 in 1.58 m
Width (with mirrors) 57.8 in 1.46 m
Breakover Ground Clearance 6.9 in 0.17 m
Front Bumper Clearance 8.6 in 0.22 m
Rear Bumper Clearance 9.2 in 0.23 m
Hitch Hook Height 11.5 in 0.29 m
Max. Drive Speed 20mph 32kph
DBP 5,000 lb  22.2 kN
Weight 9,600 lb 4,355 kg
Rear Axle Newage – Model 515 planetary (subject to change)
Rear Tires LT225 R16
Front Tires 185/60 R14
